5 left
5 Video Inputs
Channel 1-4:
HDMI/SDI auto-detection, configurable.
Channel 5:
NDI, UVC, internal video player selectable.
3 Video Outputs
HDMI OUT 1-2:
Selected from 5 video input channels, multiview, PVW or PGM.
USB 1:
UVC output to OBS, Zoom, Vmix, etc.
2 Audio Input
MIC 1-2:
3.5mm Jack, MIC, MIC+power and Line configurable.
1 Audio Output
PHONE:
3.5mm Jack, selected audio monitoring.
Control
Internal menu, software for PC or MAC, Stream Deck via companion plug-in.
Direct Streaming
Ethernet:
3 platforms simultaneous streaming, RTMP, up to 10Mb/s.
Audio Mixer
2 Analog Inputs, 4 HDMI/SDI audio, 1 AUX audio. On/Off/AFV control, fader gain, balance, and delays control; 8 audio meter display.
Multiview Monitoring
PGM/PVW, 5 channel preview, STILL 1-2 with source label (UMD), tally, marker, audio meter, fade Level, audio on/off and AFV; Recording, playback and streaming status; Control Menu.
Recording and Playback
Internal recording and playback high-quality H.264 up to 70Mb/s while streaming. Internal SD card or external SSD is supportted.
Input video format
1280x720p@50/59.94/60,1920x1080p@23.98/24/25/29.97/30/50/59.94/60, 1920x1080i@50/59.94/60
Output video format
1920x1080p@23.98/24/25/29.97/30/50/59.94/60
Macro
Up to 8 Macros can be accessed via panel, more via software.
Super Source
2 windows + 1 background, 4 pre-defined layout with modification.
Other Effects
Upstream Key: 1; DSK: 1; Chroma Key: 1, Luma Key: 1, Transition: 18 patterns; Color Generator: 5; Pattern Generator: 2; PIP: 1; Still Image: 2 generators, 32 storage with key and fill, PNG format.
Environmental
Power: 12V DC/14W; Weight: 500g; Dimension (W×H×D): 252.4×49.3×107.3mm; Working Temperature: 5°C to 40°C (41°F~104°F).
Spesifikasi Monitor :
- 14.0" Full HD 1920 x 1080 portable anti-glare IPS display with 60HZ resolution
- switch the screen view between horizontal and vertical modes for the perspective you prefer
- Plug and Play,simply connect with one USB-C cable for video signal and power
Dispatch: Today (expect holiday)
Shreenathji Production

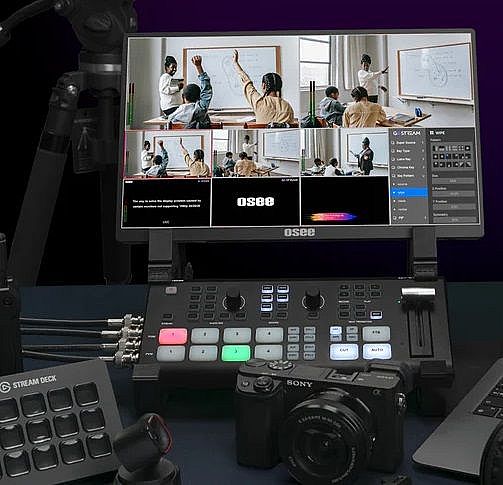

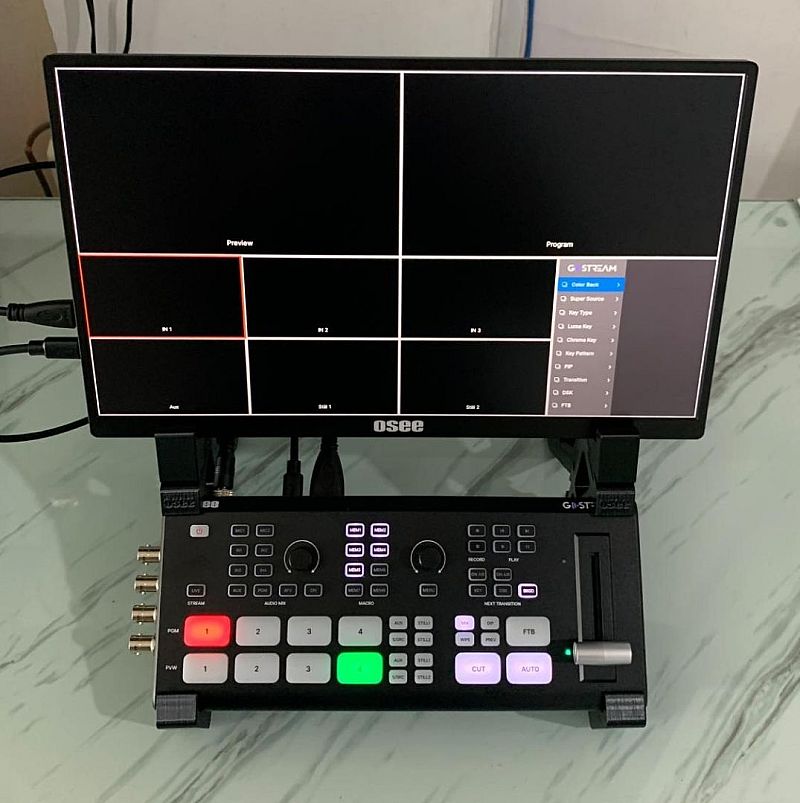

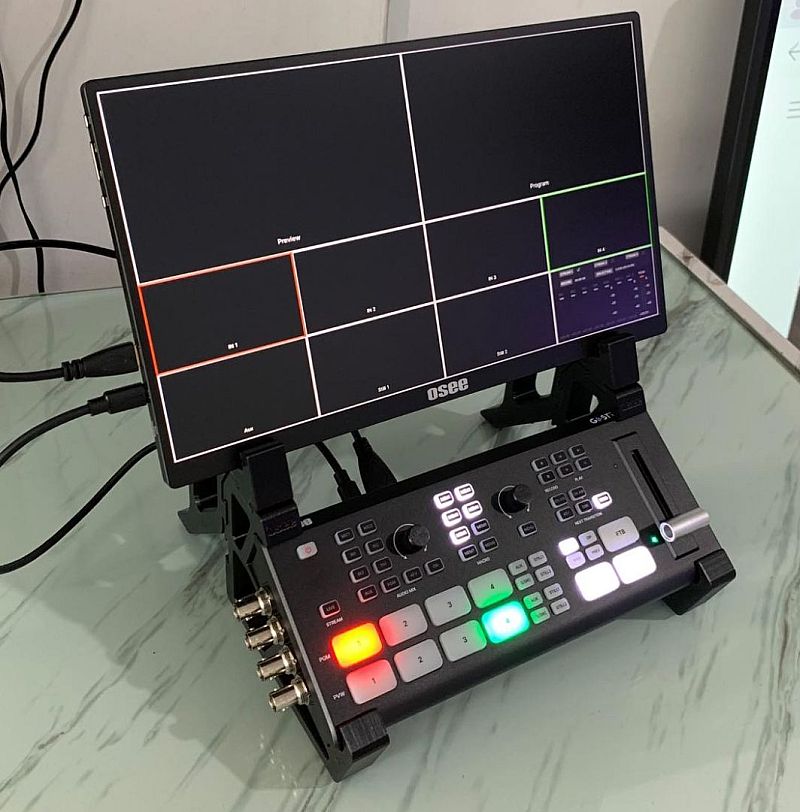

OSEE DUTE - SWITCHER WITH MONITOR
Rs. 54,280.00
