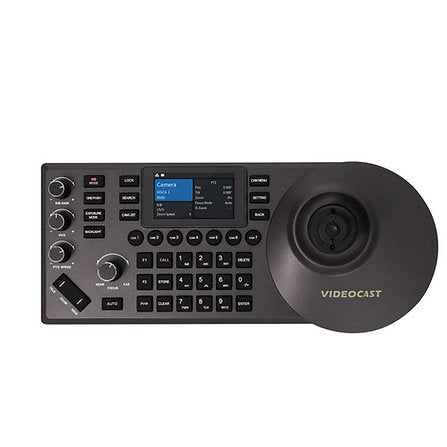

VIDEOCAST PTZ Camera Controller VC 51 control up to 7 PTZ Cameras

4D precise Joystick+3D knobs+Ergonomic Zoom Button

Camera parameters control such as white balance, exposure, focus and zoom etc.

Built-in 3-inch color screen

Support real-time PVW of current camera viewing through up streaming (NDI HX2 and RTSP only)

Support 7 cameras selection shortcuts

7 camera shortcuts can be set quickly according to requirements; Up to 1000 cameras information can be saved.

Newly upgraded UI operation interface

Display main parameters of cameras directly, personalize stylish interface casually

Remote control of PTZ camera menu

Open camera’s menu quickly and combine PVW screen or image screen to control

* This function is recommended to be used with our camera

White and red backlight silicone buttons

High-quality silicone, excellent touch, support white and red backlight so it can be operated smoothly in a low-light environment; support letters and common characters input and other operations such as editing camera’s name and address.

Support buttons lock via one click

Lock buttons via one click to avoid misoperation

Multiple control protocols, apply to abundant venues

Support VISCA、VISCA Over IP、VISCA TCP、PELCO P/D、Onvif and NDI, support automatic protocol recognition.

* Additional licenses are required to upgrade the NDI function, please consult the manufacturer for details
Abundant interfaces, multiple connection methods
External RS-232, RS422/485 serial port and RJ45 network interface. The network interface supports POE function, thereby reducing wiring trouble;

External tally interface
Support up to 8 tally channelsSupport customizable buttons
Support customizable buttons F1, F2, can set the best operation function according to requirement.
